20 years of industry experience
Are mainly used in the telecommunication service center,
Railway Control Center ，internet/data exchange center,
industrial automation, automated office, DC screen/cabinet, etc.
To meet your various needs.
Product details

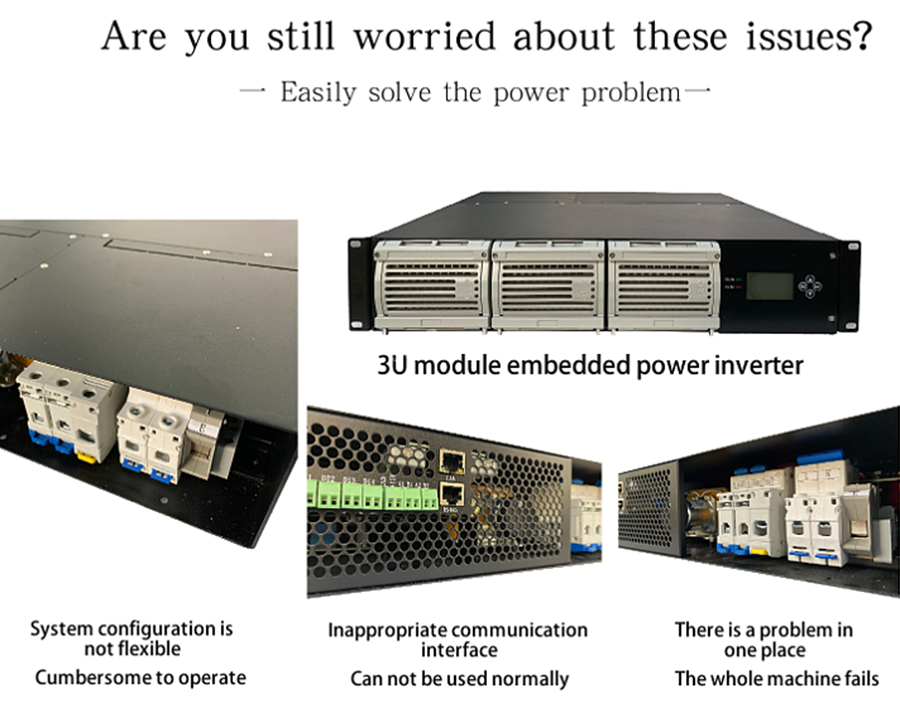

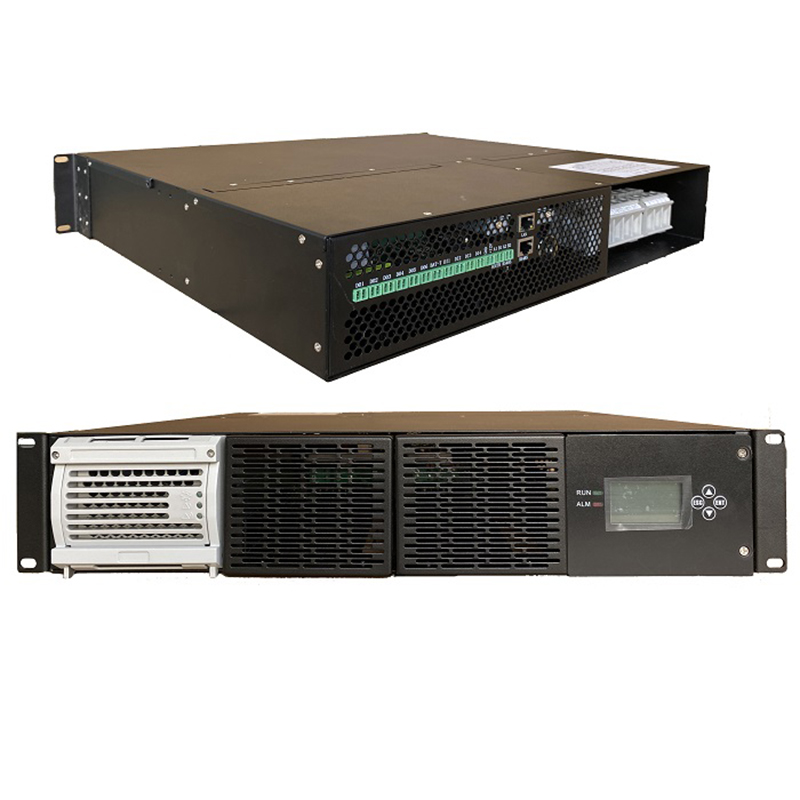

This type Embedded Power System is widely deployed in the Telecom/Industrial environment today, a new generation “Green & Energy Saving” system, aiming at outdoor low power mobile Telecom/Industrial power market, meeting the trend of Telecom base station development, saving construction cost and shortening time. The system is highly adaptable with environment, features with wide operating temperature range, meeting the demand of high level users.
Applications
Suitable to COMMUNICATION FIELD POWER FROM 1-10KW
1. Telecom station/base/ Cable Equipment
2. Communication Station.
3. Computer data center
4. SCADA Networks and Data Equipment
5. Phone /cell base
6. Radio Base stations/ Cell Sites
7. Monitoring center room
8.City WIFI device
9. Emergency communication car
10. Railway & metro
11. Distributed Antenna Systems
12. Marine & offshore
13. Building Management Systems
14. Fire Alarm Systems
15. power utilities System Control /field
16. power plant/station
17.Power monitoring system
18.Solar power system
19.Wind energy system
Product Advantages
1.Widely operating range of AC input voltage: 90~290Vac n
2.60 amp output per module, 180 amp system capacity max for 2U （Whole system 600 amp max)
3.Perfect battery management, accessory battery temperature detector
4.Current/voltage switching tech with high efficiency: ≥93.2%
5.Temperature compensation, LLVD and BLVD protection

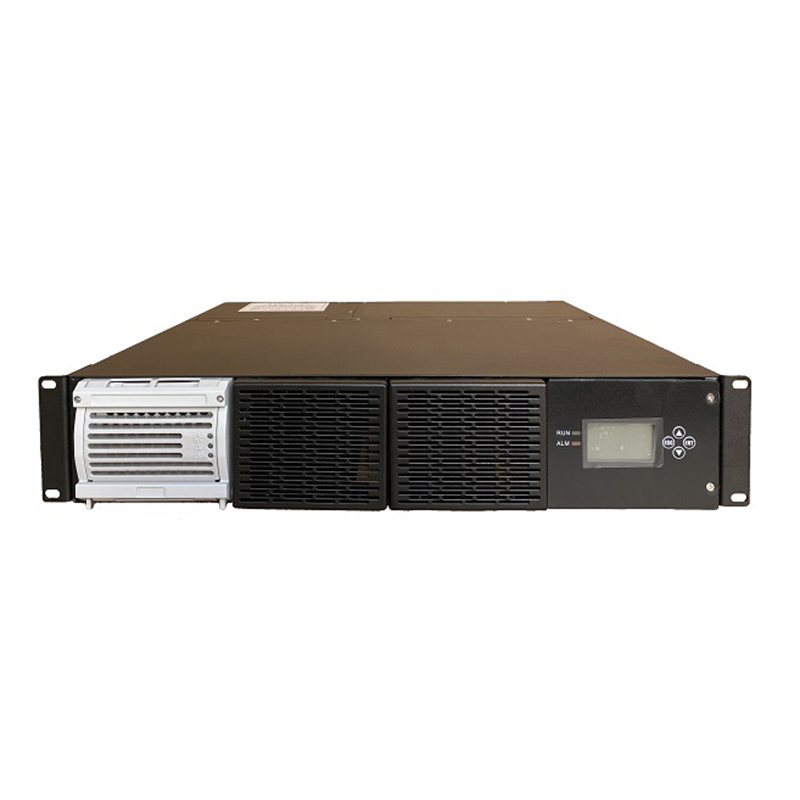

6.Compact 2U 19’ inch rackmount shelf
7.Real-time detection of operating status, sound-light alarm
8.Abnormal log record: input over/ under voltage protection, output over voltage protection, output over current protection,
9.output short circuit protection, over temperature alarm, AC loss alarm etc.
We will provide more precisely and efficiently manufacture and serve according to clients' draw-ings.-
We have professional QC team to ensure your product more better.
-Check the raw material before starting production.-Have the random inspection during the processing.
-Make the 100% inspection before the shipments.
FAQ
Q1: What is your terms of packing?A1: 1KVA, 2KVA, 3KVA, 4KVA, 5VA, and 6KVA inverters are packed inside the double corrugat-ed grey cartons separately, 8KVA and 10KVA inverters are packed inside the wooden cartons sepa-rately; each inverter has PE foam wrapping for security.There cartons don't show any company information, but the OEM printing is accepted.
Q2: What is your terms of payment?A2: Payment<=10000 USD, 100% in advance. Payment>=10000 USD, 30% T/T in advance ,bal-ance before shipment.
Q3: What is your terms of delivery?
A3: EXW, FOB, CFR, and CIF.
Q4: How about your delivery time?
A4: The lead time will be 5 days for samples (less than 5pes), and 5~30 days for bulk order.
Q5: OEM design acceptable?
A5: Yes, highly welcome.
Q6: Do you test all your goods before delivery?
A6: Yes, we have 100% test before delivery.
Q7: What is your price strategy to different buyers? Will you offer the same prices to the distributorand the end user?A7: We offer different prices according to order quantity, also we will offer discount to the buyerswhose accumulated order quantity reach certain amount; The distributors and end users will re-ceive the same quotation in the begimning obviously; but surely finally our distributors or agentswill get very protective prices.
Q8: Will you accept the exclusive distributor?A8: Yes, and we will not sell our devices to the other customer in our exclusive-distributor' zones,and forward all the potential buyers' orders and contacts to them.
If you have some problems about Embedded Power System 3u dc 48v 150A switching power supply, or want to know more details about Rack mount Telecom Inverter,Telecom Rectifier System,Home Pure Sine Wave Inverter,Solar MPPT INVERTER,DC to DC converter, etc. Welcome to contact us!
Company profile
| No. | Item | Technical Specifications | |
| 1 | Environmental Requirements | Operating temperature | -40℃~55℃(-40 to +131°F) |
| Storage temperature | -45℃~70℃ (-40 to +158°F) | ||
| Relative humidity RH | 5%~95%RH（40±2℃，no condensation） | ||
| Atmospheric pressure | 62kPa~106kPa | ||
| Altitude | 0m~2000m | ||
| Degree of protection | IP20 | ||
| 2 | AC Distribution | Input mode | Single phase input |
| Input voltage | 220Vac | ||
| Voltage range | 90V ~ 290VAC | ||
| Frequency | 45 Hz ~ 65Hz | ||
| System efficiency | ≥93.2% （@230Vac，Peaking） | ||
| System input power factor | ≥0.99（@230Vac，full load） | ||
| THD | ＜5% （@230Vac，full load） | ||
| System protection function | AC overvoltage& under-voltage protection; DC overvoltage&under- voltage.current limit.short circuit protection; battery and rectifier over temperature protection; automatic restoration happens after the over-voltage.over-current.under-voltage and over-temperature disappear. | ||
| 3 | DC Distribution | System output voltage | Rated output：24VDC |
| Adjustable range: 20VDC-30VDC continuously adjustable | |||
| System output current | 24V/30A | ||
| System load regulation | ≤±0.5% | ||
| System voltage regulation | ≤±0.5% | ||
| System stability precision | ≤±0.5% | ||
| Current sharing capability | module current sharing not more than ±5％ | ||
| Phone balance weight noise | ≤2mV（@230Vac，full load） | ||
| Peak-peak noise voltage | ≤200mV(0 MHz ~ 20MHz) （@220Vac，half load ~ full load） | ||
| system current limit value | Power system: 1-33A,Note: can be settable continuously | ||
| System voltage drop | At full load. the voltage drop of DC distribution within the rack shall below 500 mV | ||
| Output distribution | Load distribution:3@ 135A Rail Mount Terminal | ||
| Battery distribution | Battery distribution：1*@135A Rail mount Terminal | ||

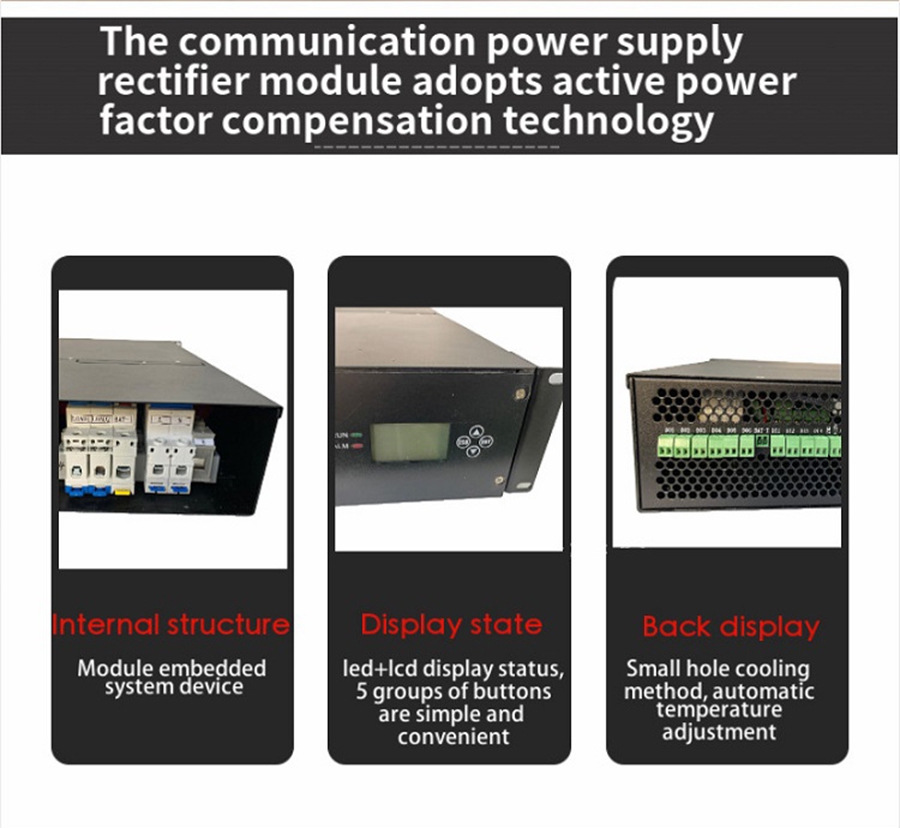

| 4 | Module And Monitoring Unit | Rectifier hot-swap | Hot-swap available.not influencing system operation |
| Rectifier indication | with operation.alarm.and fault indicators | ||
| Soft start time | 3s-10s | ||
| rectifier fault influence | Not influencing the set parameters of rectifier when rectifier at fault | ||

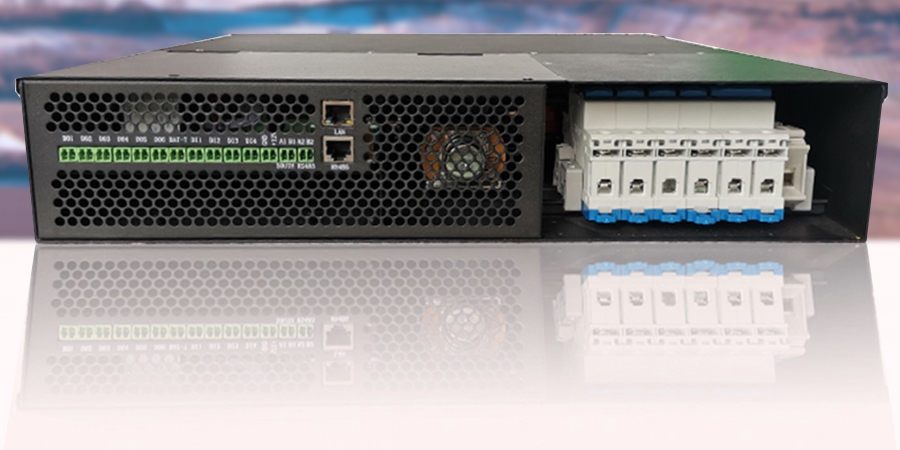

| Remote monitoring | With remote metering & remote control & remote signaling functions. providing standard RS485&TCP/IP Interface and 6 sets of the dry contact output port & Battery Temp.Sensor | ||

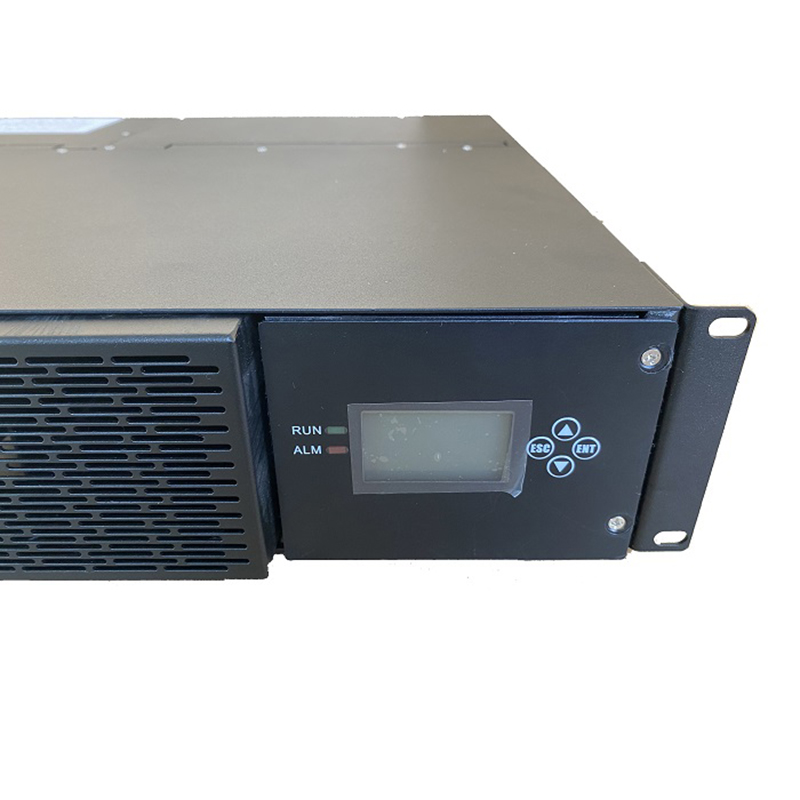

| Monitoring unit | English language in LCD screen of the rectifier, | ||
| The parameters can be set through the monitoring unit. with parameter set and power-failure data store functions. Max 1000 Units vents. | |||
| Installation method | Rectifier module support swappable | ||
| Remote control | rectifier start and close.battery test. equalize and float charging ,DIN /DO configuration and so on | ||
| Alarm functions | With AC over voltage/under voltage.DC voltage over/under.module Communication fault and over temperature alarm,Battery remove,Surge and so on | ||
| 5 | Safety | Insulation resistance | Testing voltage 500VDC， Insulation Resistance ≥10M (normal atmospheric pressure, normal temperature, relative humidity <90%, no condensation) |
| Insulation strength | Input to output: 3500VDC @1min&leak current ≤10mA | ||
| Input to enclosures: 3500VDC @1min&leak current ≤10mA | |||
| Output to enclosures:750VDC @1min&leak current ≤10mA | |||
| System leak current | ≤3.5mA（2320Vac input） | ||
| Grounding performance requirements | The system with operating ground and protection ground.with clear mark.the resistance between the enclosures of distribution and all palpable metal components and grounding nut is not more than 0.1Ω | ||
| AC lightning protection | The equipment AC side can bear simulated lightning impulse Current of waveform 8/20μS and rated amplitude 40kA.(Optional) | ||
| EMC | In accordance with EN55022 CLASS A,GB9254 CLASS A,FCC PART15 CLASS A,GB17626-1998,IEC 61000-3-2 | ||
| 6 | Batty | Battery low voltage alarm and protection （BLVD） | When DC voltage below battery protection threshold value and there is no AC input. the battery protection alarm.lasting for 1 min.battery protection DC connect cut off. |
| Battery management function | With battery management function; with the function of the manual or automatic shift of equalized or float charging status of the battery.current limit charging at equalized state; Temperature compensation for the system output voltage,(equalized and float voltage can be adjusted automatically based on 1~2 00（adjustable）mV/cell/℃.the higher the battery temperature.the lower the float voltage.). | ||
| 7 | others | Noise | ≤55dB (A) (measured at 1m distance from the equipment) |
| MTBF | ≥ 100000 hours | ||
| Impact and vibration | 1. Can bear impact of peak acceleration 150m/s2 lasting for 11ms | ||
| 2. Can bear sine wave vibration of frequency (10 ~ 55)Hz and amplitude 0.35mm. | |||
| Material flame retardant performance | 1.The flame retardant class of PCB used in system and module controller meet V-0 requirements of GB4943. | ||
| 2.UL certificated flame retardant cable is adopted. | |||
| 3.The flame retardant class of insulation materials meets V-1 requirements of UL regulations. | |||
| 8 | Mechanical Data | Chassis coating | Meeting damp-proof and corrosion-proof requirements.there is a surface coating on the enclosures. which meets below requirements: |
| 1. Making the adhesion test in accordance with ISO 2409. reaching 0 class. | |||
| 2. Making a pencil hardness test in accordance with ASTM D3363.not less than 2H. | |||
| 3. Making impact test in accordance with ASTM D2794.reaching 50kg.cm. | |||
| 4. Making salt frog | |||
| Cabinet material | Material: CRCA ; thickness:1.5mm | ||

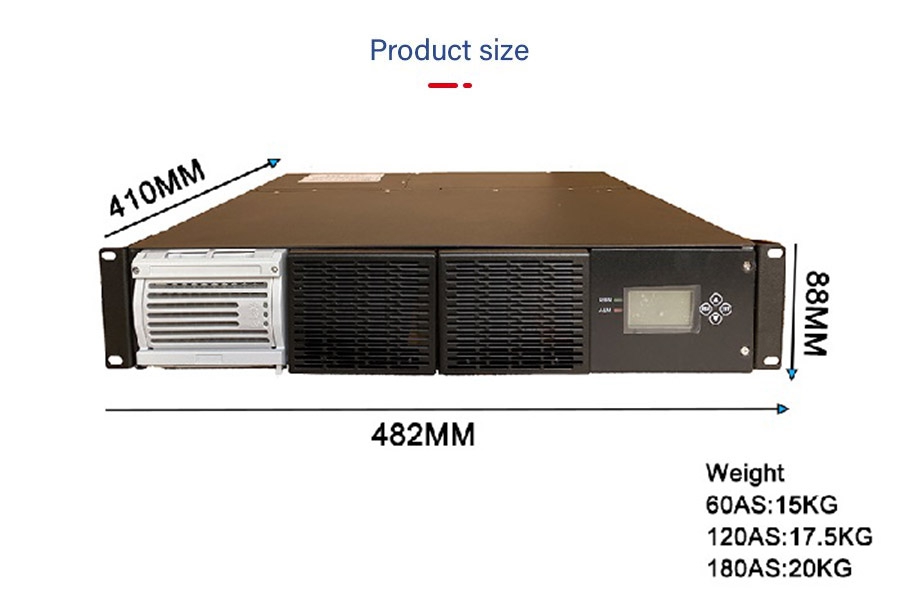

| Dimensions (W×D×H) | Cabinet: 482mm×410mm×88mm (W×D×H) | ||
| Weight (kg) | Appro: 15kg | ||
